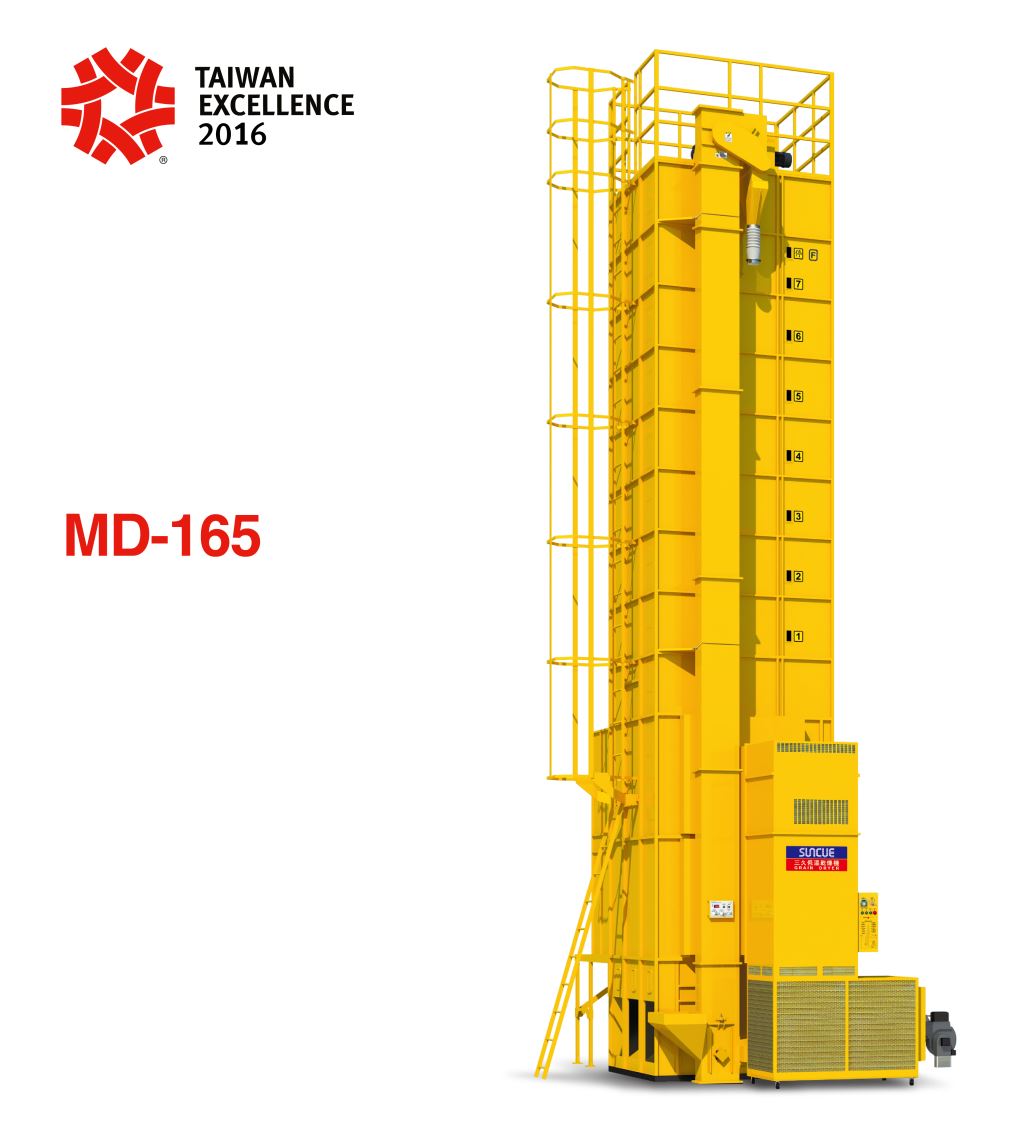

MD-165 Series
• The low-temp., even and speedy drying minimizes broken grains and produces beautiful kernels.
• The entire dryer is designed to be strong and sturdy, making it suitable for heavy-duty.
• With foolproof design, users can produce high-quality rice from the 1^st, 100^th to 1000^th batch.
  Grain consistent in quality will be available to customers.
• Automatic moisture control prevents over-drying and weight loss.
• By using self-milled free rice husk, users no longer need to spend on diesel, natural gas or electricty as dryers' heat sources.

Multiple models with various fuel options availabl

Heat Source	MD-165 Series
Diesel	●
Gas	●
Biomass	●
Steam	●
Diesel & Husk Dual	●
Gas & Husk Dual	●

Application

Specifications

Item			MD-165
Heat Source			Kerosene or Premium Diesel*
Type			Gun type
Combustion      Approx. liter/hr	Maize             1 liter=690g		27~54 230,000~460,000 Kcal/hr
	Paddy            1 liter=560g		11.3~27 96,000~230,000 Kcal/hr
	Wheat            1 liter=680g		11.3~27 96,000~230,000 Kcal/hr
Capacity      Approx. kg	Maize             1 liter=690g		7,000~16,500
	Paddy            1 liter=560g		5,700~13,200
	Wheat            1 liter=680g		6,900~16,200
Dimension  L(A)×W(B)×H(C)mm			5,341×3,626×10,272
Net Weight  Approx. kg			3,170
Power Consumption  kW			Maize 11.75      Paddy 11.25
Function	Loading Approx. min	Maize	75
		Paddy, Wheat	66
	Discharging Approx. min	Maize	70
		Paddy, Wheat	65
	Drying Rate %/hr	Maize	1.8~2.6
		Paddy, Wheat	0.7~1.2   Seed 0.2~1.0
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse, Burner flame sensor, Over-heat sensor

*Use high-quality kerosene or premium diesel only.



Item			MD-165G
			Low-temp		High-temp
Heat Source			LPG	NG	LPG	NG
Max. Combustion      Approx.			Max. 16.6kg/hr ≒233kW	Max. 18.2m3/hr ≒233kW	Max. 41.6kg/hr ≒581kW	Max. 45.5m3/hr ≒581kW
Capacity      Approx. kg	Maize             1 liter=690g		-		7,000~16,500
	Paddy            1 liter=560g		5,700~13,200		-
	Wheat            1 liter=680g		6,900~16,200		-
Function	Loading Approx. min	Maize	-		75
		Paddy, Wheat	66		-
	Discharging Approx. min	Maize	-		70
		Paddy, Wheat	65		-
	Drying Rate %/hr	Maize	-		1.8~2.6
		Paddy, Wheat	0.7~1.2		-
Dimension  L(A)×W(B)×H(C)mm			5,341×3,930×10,272
Net Weight  Approx. kg			3,170
Power Consumption  kW			11.75
Type			Gun type
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse, Burner flame sensor, Over-heat sensor




Item			MD-165B
Heat Source			SUNCUE Biomass Furnace BB-18, Rice Husk Furnace SB
Capacity      Approx. kg	Maize             1 liter=690g		7,000~16,500
	Paddy            1 liter=560g		5,700~13,200
	Wheat            1 liter=680g		6,900~16,200
Dimension  L(A)×W(B)×H(C)mm			6,491×2,759×10,272
Net Weight  Approx. kg			3,520
Required Thermal Energy Per unit approx.	Maize		340,000 Kcal/hr Ambient Temp. +60°C
	Paddy, Wheat		53,000~210,000 Kcal/hr Ambient Temp. +40°C
Power Consumption  kW			14.75
Function Paddy	Loading          Approx. min		66
	Discharging  Approx. min		65
	Drying Rate    %/hr		0.7~1.2
Electricity			3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices			Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse



Item				MD-165S-7		MD-165S-12
Heat Source				Steam
Capacity      Approx. kg	Maize             1 liter=690g			7,000~16,500
	Paddy            1 liter=560g			5,700~13,200
	Wheat            1 liter=680g			6,900~16,200
Dimension  L(A)×W(B)×H(C)mm				4,710×2,810×10,272		5,060×2,810×10,272
Net Weight  Approx. kg				3,900		4,490
Power Consumption  kW				11
Function Maize	Loading          Approx. min			75
	Discharging   Approx. min			70
	Drying Rate    %/hr			1.8~2.6
Applicable Region				Regular		Regular, Cold, Frigid
Applicable Grains				Paddy, Wheat		Paddy, Wheat, Maize
Temp. Increase Rang Approx. ambient temp.				Maize +14~49°C Paddy +16~55°C		Maize +25~72°C Paddy +27~80°C
Boiler Capacity  Approx. ton/hr				1.0		1.2
Boiler Pressure   Approx. kg/cm²				7
Electricity				3P, 220V/380V/415V/440V, 50/60Hz
Safety Devices				Thermo-over relay, Air pressure switch, Full load buzzer, Timer, Control fuse

Dimensions  Unit mm






● Above numbers and drying rate are derived from reducing moisture in paddy from 26% to 15%, wheat/corn from 30% to 12.5% ─ for reference only. Actual results vary among different ambient temperature, relative humidity, grain varieties, hot air temperature, moisture content before and after drying.
● Please apply low hot air temperature for drying paddy to prevent high breakage rate.
● Gas pipe lines have to be built by certified local professionals. NEVER do it by yourself.
● The specification and graph are for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
● The specifications of burner shown above are Japanese standard (Thermal energy: NG 11,000 Kcal/m3; LPG 12,000 Kcal/kg). Please consult with SUNCUE for burner with CE standard.
● The density, composition and pressure of natural gas vary at different locations, thus thermal energy per m3 also varies. Ex: 8,900kcal/m3 in Taiwan, 11,000kcal/m3 in Japan, 8,400kcal/m3 in Sichuan province of China.
● Only use kerosene or premium diesel or diesel conformed to national standards. Please choose good quality diesel that can completely vaporize according to ambient temperature.
● Diesel/Rice Husk & Gas/Rice Husk Duel-type are made to order.
● Boiler is a dangerous device. It should be installed in a boiler house and operated by professionally-trained personnel with official license by laws. The operation must obey local government regulations.
● The required thermal energy is for reference only. Actual data will differ among grain variety, impurity rate, and drying condition.
*Use high-quality kerosene or premium diesel only.
